GeneDireX - PM007-0500

BLUeye Prestained Protein Ladder

Size: 500 μl

Note: GeneDireX / Protein Marker / Protein Standard / SDS-PAGE / Western Blot
Categories: Protein Marker/Ladder

The BLUeye Prestained Protein Ladder is a three-color protein standard with 12 pre-stained proteins covering a wide range of molecular weights from 10 to 245 kDa. Proteins are covalently coupled with a blue chromophore except for two reference bands (one green and one red band at 25 kDa and 75 kDa respectively) when separated on SDS-PAGE (Tris-glycine buffer). The BLUeye Prestained Protein Ladder is designed for monitoring protein separation during SDS-polyacrylamide gel electrophoresis, verification of Western transfer efficiency on membranes (PVDF, nylon, or nitrocellulose) and for approximating the size of proteins. The ladder is supplied in gel loading buffer and is ready to use.

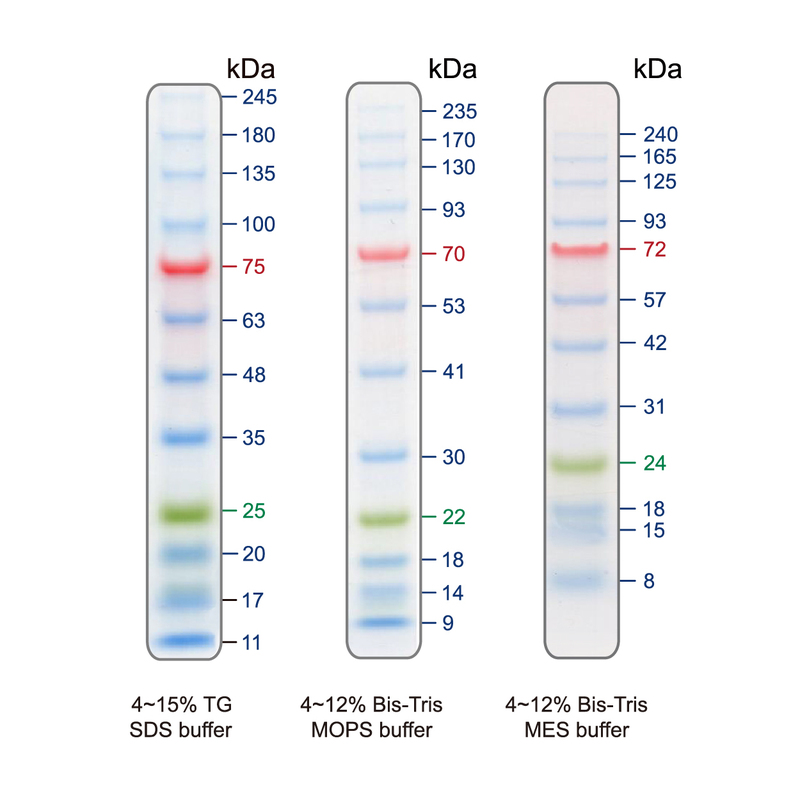

Guide for Molecular Weight Estimation (kDa)
Migration patterns of BLUeye Prestained Protein Ladder in different electrophoresis conditions are listed below :


• 3 μl or 5 μl per loading for clear visualization during electrophoresis on 15-well or 10-well mini-gel, respectively.
• 1.5~2.5 μl per well for general Western transferring.
• Apply more for thicker (> 1.5 mm) or larger gel.


Contents :
Approximately 0.1~0.4 mg/ml of each protein in the buffer (20 mM Tris-phosphate, pH 7.5 at 25°C), 2 % SDS, 0.2 mM Dithiothreitol, 3.6 M Urea, and 15 % (v/v) Glycerol).

Quality Control :
Under suggested conditions, BLUeye Prestained Protein Ladder resolves 12 major bands in 15% SDS-PAGE (Tris-glycine buffer) and after Western blotting to a nitrocellulose membrane.

Storage :
Stable for up to 2 weeks at 25°C
Stable for up to 3 months at 4°C
For long-term storage, store at -20°C


Lane 1: GeneDireX PM019-0500 (Bio-Helix) 5ul
Lane 2: GeneDireX PM008-0500 (Bio-Helix) 5ul

Lane 3: GeneDireX PM007-0500 (Bio-Helix) 5ul
Lane 4: GeneDireX PM006-0500 (Bio-Helix) 5ul
Lane 5: GeneDireX PM001-0500 (Bio-Helix) 5ul
Lane 6: GeneDireX PM019-0500 (Bio-Helix) 5ul
Lane 7: GeneDireX PM001-0500 (Bio-Helix) 5ul
Lane 8: GeneDireX PMU12-0500 (Bio-Helix) 5ul
Lane 9: thermo Mark12 5ul
Lane 10: Bio-Rad 161-0317 5ul

*NuPAGE Bis-Tris 4-12% was used to run SDS-PAGE in MOPS and MES buffer. 5ul of protein ladder samples was loaded into each lane.

Name Download
Bio-Helix_BLUeye Prestained Protein Ladder_SDS Bio-Helix_BLUeye_Prestained_Protein_Ladder_SDS.pdf
GeneDireX_PM007-0500_Protocol GeneDireX_PM007-0500_Protocol.pdf
