BIO-HELIX - PMI09-0500

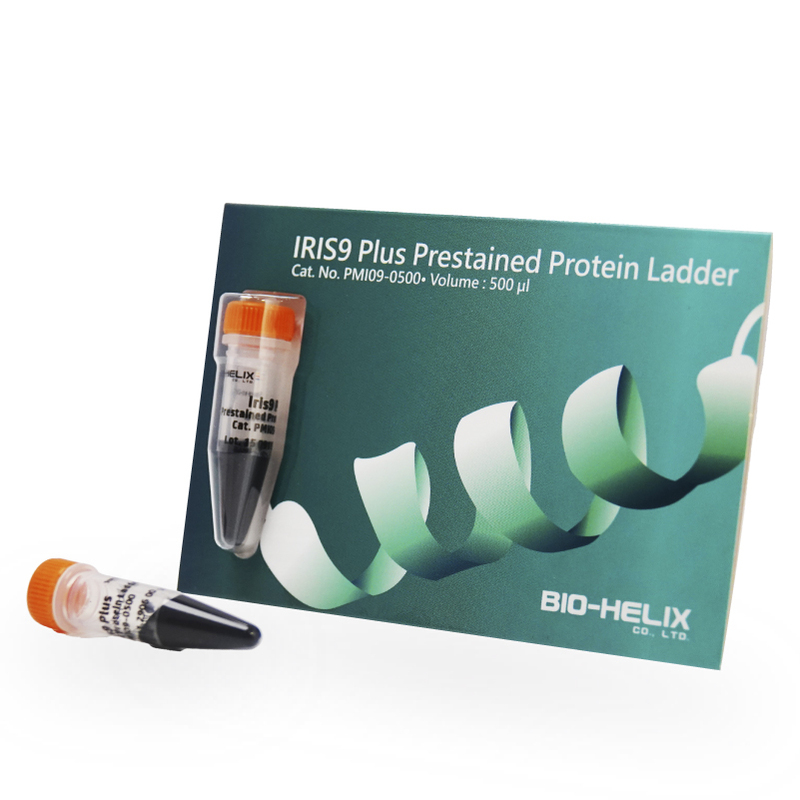

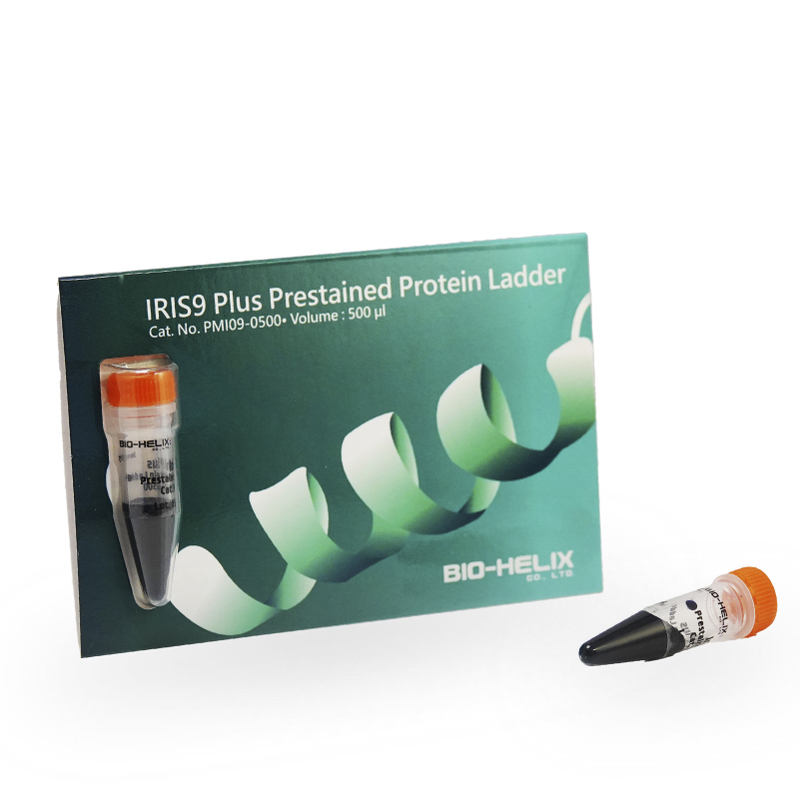

IRIS9 Plus Prestained Protein Ladder

Size: 500 μl

Note: Protein Marker / Protein Standard / SDS-PAGE / Western Blot / 9 bands / SDS-polyacrylamide gel electrophoresis
Categories: Protein Marker/Ladder

The IRIS9 Plus Prestained Protein Ladder is a combination of 9 pre-stained proteins with molecular weights from 15 to 170 kDa. The 9 recombinant proteins are covalently coupled with blue chromophore, while 1 green band at 15 kDa, a red band at 70 kDa and a newly designed peacock green band at 60 kDa serve as reference bands. The IRIS9 Plus Prestained Protein Ladder keeps track of the size and separation of proteins during SDS-polyacrylamide gel electrophoresis, approximating the target protein size and validating the Western transfer efficiency on PVDF, nylon, or nitrocellulose membranes.


Guide for Molecular Weight Estimation (kDa)

Refer to the IRIS9 Plus Prestained Protein Ladder patterns in various electrophoresis conditions:

3 μl or 5 μl per loading for clear visualization during electrophoresis on 15-well or 10-well mini-gel, respectively. 2.5 μl per well for general Western transferring.

Note: The molecular weight of each protein (kDa) was measured against an unstained protein ladder in every electrophoresis condition. Additional data should be considered for a more accurate adjustment.


Storage Buffer :

0.2~0.4 mg/ml of each band of protein is stored in a mixture of solution that contains: 20 mM Trisphosphate at pH 7.5, 2% SDS, 0.2 mM Dithiothreitol, 3.6 M Urea, and 15% (v/v) Glycerol.


Quality Control :
5μl of IRIS9 Plus Prestained Protein Ladder (PMI09) resolves 9 bands in 4-20% SDS-PAGE (Tris-glycine buffer) and after Western blotting to PVDF membrane.


Storage :
Stable for up to 2 weeks at 25°C.
Stable for up to 3 months at 4°C.
Stable for up to 24 months at -20°C.


  • Vertical Electrophoresis system
  • Power supplies
  • Vortex or equivalent
  • Microcentrifuge
Name Download
PROTOCOL PMI09_Protocol_20211224.pdf
Safety Data Sheet|SDS PMI09_SDS.pdf
